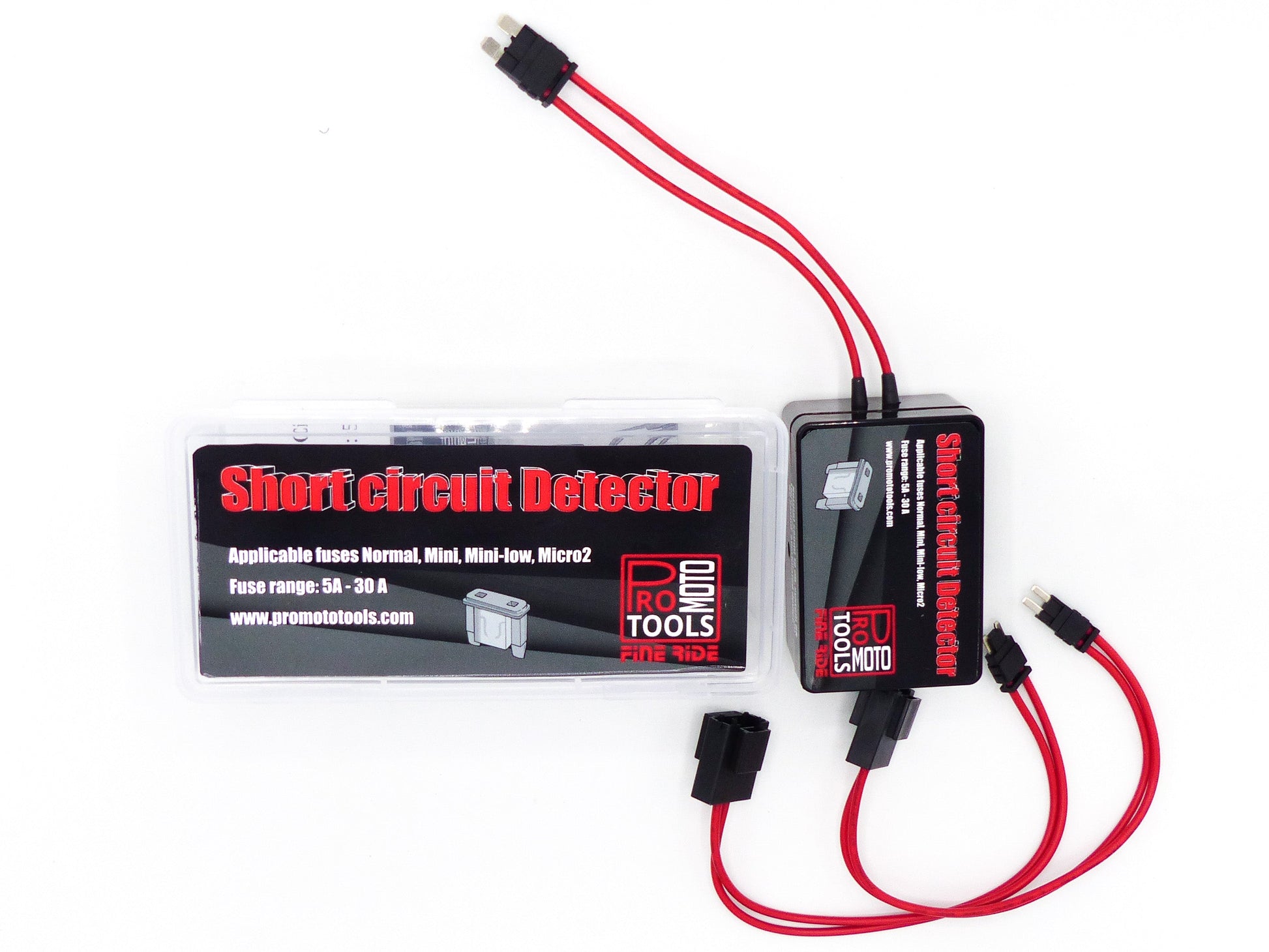

Short Circuit Detector

Short Circuit Detector

Applicable range of fuses: 5A-30A

1 , Locate burned fuse.

2, Select proper wire adapter

3, Fit to the burned fuse socket

4, Give ignition, Engine RUN (in case of fuel system, ignition system fault)

Normal sound 20 DB.

SHORT CIRCUIT 30 DB.+

No sound: OVERHEATED DEVICE

NOTE: if No sound, leave Fuse Burning Detector cool for next test.

5, Move, shake wire harness or knock/disconnect electrical parts until sound change. If sound get loud at moving section, there is short circuit location.
